Cat 6 UTP Cable

Vision International, A leading manufacturer and exporter of Electrical & Electronic cables from Ahmedabad, Gujarat, India.

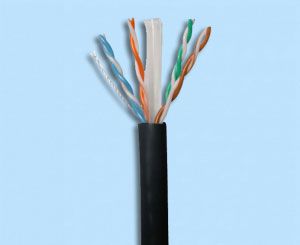

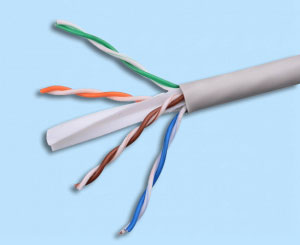

VISION offers Cat6 cable that consists of 100-Ohm impedence, 4-pair UTP cables for horizontal installations n Local area networks (LANs). it meets & exceed category 6/class E standards requirements in ANSI/TIA 568-C.2, & ISO/IEC11801.

Dimensions

Conductor

  • Annealed Bare Copper
  • Conductor Dia: 23AWG(0.55mm)

Insulation

  • Polyethylene

No. of pairs

  • 4 pairs

Overall jacket

  • PVC, gray & black color

Jacket Thickness

  • 1.40mm

Product Features & Compliances

  • Exceptional material properties & cable design
  • A round smooth shape for better handling
  • Extremely high pair-balance-providing excellent EMC (Electromagnetic Compability)
  • Minimum radiations & Maximum noise immunity
  • category 6A aaccording ANSI/TIA-568-C.2
  • RoHS Compliant

Electrical Parameter

Characteristics Impedence

  • 100±6Ω@ 1-600 Mhz

DC Resistance

  • 72 Ω/km (max)

Voltage Rating

  • 72 vdc max

Dielectric Strength

  • 1500V/1 minute min rms

Insulation Resistance

  • 500MΩ/km(min)@500 Vdc

Velocity of propagation (NVP)

  • 69%

Mutual Capacitance

  • <5.6nf/100mtr

WELDING CABLE

Welding Cable - Copper Conductor General Purpose & HOFR Rubber Compound Covered
Nominal Cross Sectional Area mm² No/Dia of Standards Thickness of Insulation General Purpose HOFR
Current Rating at Max. Duty Cycle Amps
100% 60% 30% 100% 60% 30%
16 510/0.2 2.0 94 121 172 135 174 246
25 796/0.2 2.0 125 161 228 177 228 343
35 1114/0.2 2.0 156 201 285 221 285 403
50 707/0.3 2.2 197 254 360 279 360 509
70 990/0.3 2.4 248 320 453 352 454 643
95 1344/0.3 2.6 299 386 546 424 547 774
Welding Cable - Aluminium General Purpose & HOFR Rubber Compound Covered
Nominal Cross Sectional Area mm² No/Dia of Standards Thickness of Insulation General Purpose HOFR
Current Rating at Max. Duty Cycle Amps
100% 60% 30% 100% 60% 30%
25 0.31 179 103 80 273 157 122 150
35 0.31 230 133 103 340 196 152 230
50 708/0.3 2.2 155 200 283 222 287 405
70 999/0.3 2.4 196 253 358 280 361 511
95 1350/0.3 2.6 237 306 433 339 438 619
120 1702/0.3 2.8 283 365 517 404 522 738
Recommended Cable Size for Welding Electrodes
Electrode Size Equivalent Cable as per IS : 434 Manual Welding
HOFR TRS
(SWG) (mm) Copper
(Sq.mm)		 Aluminium
(Sq.mm)		 Copper
(Sq.mm)		 Aluminium
(Sq.mm)
14 2.00 --- 16 25 16 25
12 2.50 --- 16 25 16 25
10 3.25 150A 16 25 25 35
8 4.00 230A 25 35 35 50
8 *4.00 400A* 35 50 50 70
6
 5.00 600A 50 70 70 95
4 6.00 800A 70 95 95 120
2 7.00 1000A 95 120 --- ---

(1) CURRENT RATING AS PER IS : 9875/90

(A) General Service Normal Duty Elastomeric Covered Copper (Cu) Aluminium (AI) Conductor
S.No. Conductor Size
(Sq.mm) 		Duty Cycle
100%(A) 85%(A) 60%(A) 30%(A) 20%(A)
Cu Ai Cu Ai Cu Ai Cu Ai Cu Ai
1. 16 94 --- 102 --- 121 --- 172 --- 210 ---
2. 25 125 100 136 108 161 129 228 183 279 224
3. 35 156 123 169 133 201 159 285 225 349 275
4. 50 197 155 214 168 254 200 360 283 440 347
5. 70 248 196 269 213 320 253 453 358 555 438
6. 95 299 237 342 257 386 306 546 433 669 530
7. 120 --- 283 --- 307 --- 365 --- 517 --- 633
(B) HOFR Normal Duty Elastomeric Covered Copper (Cu) Aluminium (AI) Conductor
S.No. Conductor Size
(Sq.mm) 		Duty Cycle
100%(A) 85%(A) 60%(A) 30%(A) 20%(A)
Cu Ai Cu Ai Cu Ai Cu Ai Cu Ai
1. 16 135 --- 146 --- 174 --- 246 --- 298 ---
2. 25 177 144 192 156 228 186 343 263 396 318
3. 35 221 176 240 191 285 227 403 321 497 390
3. 50 279 222 303 241 360 287 509 405 627 495
4. 50 352 280 382 304 454 361 643 511 790 620
5. 70 421 339 460 368 547 438 774 619 950 755
6. 95 421 404 --- 438 --- 522 --- 738 --- 900

Note : The Conductor Size shall be According to the Resistance Value & it's Tolerance specified in IS:8130-1984
