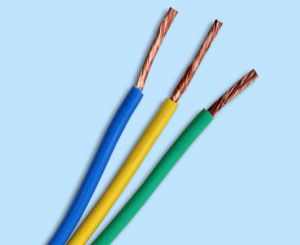

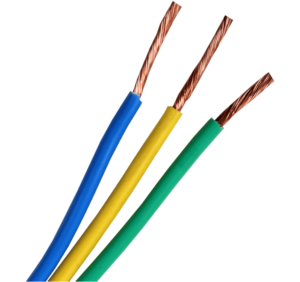

Flexible Cables

Vision International, A leading manufacturer and exporter of Electrical & Electronic cables from Ahmedabad, Gujarat, India.

VISION Offers High Quality Single Core & Multicore Flexible Cables confirming to IS/BS Standards. These Cables are used in PANEL WIRING, HOUSE WIRING, ELECTRICAL APPLIANCES, AND MOTORS ETC.

Range

  • Single Core Panel wires
  • House Wiring Cable
  • Multi Core Flexible Cable

Insulation

  • PVC Compounds
  • FR
  • FRLS
  • ZHFR

Conductor

  • Annealed Plain Copper
  • Electrolytic Grade

Purity

  • 99.9% as per IS :8130

Sheath

  • PVC-FR
  • FRLS
  • ZHFR

Standards

  • IS 694
  • BS 6004
  • IEC 60227
  • IS 8130
  • IS 5831

PVC INSULATED SINGLE CORE CABLES FOR PANEL/BUILDING(660/1100V)WIRING AS PER IS:694:1990

Single Core Cable
Area in   sq.mm Conductor Construction in General Max DC Resistance Ohm/Km at 20⁰c Insulation Thickness (in mm   Nomonal) Approx Dia In mm Current Rating in Amp.
0.5 16/0.20 39 0.6 2.4 4
0.75 24/0.20 26 0.6 2.6 7
1 14/0.30 19.5 0.6 2.8 12
1.5 22/0.30 13.3 0.6 3.35 16
2.5 50/0.25 7.98 0.7 3.8 22
4 56/0.30 4.95 0.8 4.6 29
6 84/0.30 3.3 0.8 5.4 37
10 140/0.30 1.91 1 7.5 51
16 226/0.30 1.21 1 9 68
Area in   sq.mm Conductor Construction in General Max DC Resistance Ohm/Km at 20⁰c Nominal Insulation Thickness in mm Approx Dia In mm Current Rating in Amp.
25 350/0.30 0.78 1.2 9.5 75
35 495/0.30 0.554 1.2 11.3 95
50 396/0.40 0.386 1.4 13.8 125
70 360/0.50 0.272 1.6 15.2 170
95 485/0.50 0.206 1.8 18 210
120 608/0.50 0.161 2 19.5 235
150 750/0.50 0.129 2 21.8 295
185 925/0.50 0.106 2.2 24 330
240 1221/0.50 0.0801 2.2 - 400

PVC INSULATED SHEATHED MULTICORE CORE FLEXIBLE CABLES(660/1100V)AS PER IS:694:1990

Single Core Cable
Area in   sq.mm Conductor Construction in General Conductor Dia in mm Max DC Resistance Ohm/Km Insulation Thickness Nominal at 20⁰C Overall Diameter(Max)
0.5 16/0.20 0.94 39 0.6 2.2
0.75 24/0.20 1.2 26 0.6 2.5
1 32/0.20 1.34 19.5 0.6 2.6
1.5 30/0.25 1.64 13.3 0.6 2.9
2.5 50/0.25 2.08 7.98 0.7 3.5
4 56/0.30 2.61 4.95 0.8 4.3
6 84/0.30 3.5 3.3 0.8 5.1
10 140/0.30 4.6 1.91 1 6.6
16 226/0.30 6 1.21 1 8
25 350/0.30 7.6 0.78 1.2 10
35 495/0.30 8.7 0.554 1.2 11.1
50 396/0.40 10.6 0.386 1.4 13.4
Multi Core Cable
Sheath Thickness
in mm Nominal 		Overall Diameter
in mm approx 		Current Rating Amp
2 Core mm 3 Core mm 4 Core mm 2 Core mm 3 Core mm 4 Core mm
0.9 0.9 0.9 6.2 6.6 7.2 4
0.9 0.9 0.9 6.8 7.2 7.9 7
0.9 0.9 0.9 7 7.5 8.1 12
0.9 0.9 1 7.6 8.1 9 16
1 1 1 9 9.6 10.5 22
1 1 1 10.6 11.3 12.4 29
1.15 1.15 1.4 12.6 13.4 15.2 37
1.4 1.4 1.4 16 17 18.8 51
1.4 1.4 1.4 18.8 20.1 22.2 68
2 2 2 24 25.6 28.2 86
2 2 2 26.3 28 31 110
2 2 2 30.9 33 36.5 145
  • Copper size is as per class-2 & class-5 of IS-8130/1984

Note : The Conductor Size shall be According to the Resistance Value & it's Tolerance specified in IS:8130-1984
