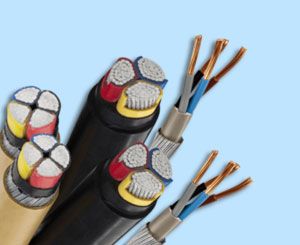

LT Power / Control Cables

Vision International, A leading manufacturer and exporter of Electrical & Electronic cables from Ahmedabad, Gujarat, India.

Vision offers complete range of LT-HT power cables in Aluminium and in Copper conductors. LT Cables find use in TRANSMISSION OF POWER UP TO 1100 VOLTS & HT CABLES FOR 3.3 KV & ABOVE.

Conductor

  • Aluminium
  • EC Grade Copper

Insualtion

  • XLPE
  • PVC

Inner Sheath

  • PVC Type ST-1 as per IS:5831

Armour

  • GI Wire / Flat Strip as per IS:1554

Outer Sheath

  • PVC Type ST-2 as per IS:5831

Reference Specs

  • IS:7098(Part-1)
  • IS:8130
  • IS:5831
  • IS:1554,(Part-1)

Cable Codes

  • For Copper - 2XY/2XFY/2XWY
  • For Aluminium - A2XFY/A2XWY
Technical Data for 3.5 Core LT Aluminium Power Cables
Dimension of 3 ½ Core, Aluminium PVC Armoured Power Cables
Type No. of Cores
& Cross
Section Area		 Minimum
No. of Wires 		Thickness of
XLPE
Insulation
(Nom.) (mm)		 Overall Diameter
(Approx.) (mm)		 Approx Net Wt. of Cable Max D.C.
Resistance
at
20 ohms/km
Strip Armor Wire Armor Strip Armor Wire Armor
Aywy/Ayfy 3 x 25 + 16
 6/6
 0.9/0.7
 23.0
 25.5
 850
 1050
 1.2000
Aywy/Ayfy 3 x 35 + 16
 6/6
 0.9/0.7
 25.0
 26.5
 980
 1200
 0.8680
Aywy/Ayfy 3 x 50 + 25
 6/6
 1.0/0.9
 28.0
 29.5
 1240
 1500
 0.6410
Aywy/Ayfy 3 x 70 + 35
 12/6
 1.1/0.9
 32.0
 34.0
 1600
 2050
 0.4430
Aywy/Ayfy 3 x 95 + 50
 15/6
 1.1/1.0
 36.0
 38.0
 1900
 2450
 0.3200
Aywy/Ayfy 3 x 120 + 70
 15/12
 1.2/1.1
 39.0
 41.0
 2300
 2800
 0.2530
Aywy/Ayfy 3 x 150 + 70
 15/12
 1.4/1.1
 42.0
 45.0
 2650
 3350
 0.2060
Aywy/Ayfy 3 x 185 + 95
 30/15
 1.6/1.1
 47.5
 50.0
 3250
 4500
 0.1640
Aywy/Ayfy 3 x 240 + 120
 30/15
 1.7/1.2
 53.5
 56.0
 4100
 5450
 0.1250
Aywy/Ayfy 3 x 300 + 150
 30/15
 1.8/1.4
 57.0
 61.0
 4950
 6400
 0.1000
Aywy/Ayfy 3 x 400 + 185 53/30 2.0/1.6 65.0 70.0 6150 8300 0.0778
Aywy/Ayfy 3 x 500 + 240 53/30 2.0/1.6 65.0 70.0 6150 8300 0.0778
Aywy/Ayfy 3 x 630 + 300 53/30 2.0/1.6 65.0 70.0 6150 8300 0.0778
Copper Conductor LT Control Cable
Dimension of Control Cable IS : 1554 (pt-1) 1988
UN-ARMOURED ARMOURED CURRENT RATING
No. of Cores & Cross Sectional Area No X mm 2 Thickness of XLPE Insulation (Nom.) (mm) Thickness of PVC Inner Sheath (Min.) Extruded mm Approx. 0.D mm Approx Net Weight of Cable Kg/Km Approx 0.D. mm Approx Net Weight of Kg/Km Direct in Ground AMPS In Air/Duct AMPS
2 x 1.5 0.7 0.3 10.0 140 12.5 370 33 29
3 x 1.5 0.7 0.3 10.5 160 13.0 390 25 22
4x 1.5 0.7 0.3 11.5 200 13.5 415 25 22
5 x 1.5 0.7 0.3 12.5 225 14.5 465 24 21
6 x 1.5 0.7 0.3 13.5 250 15.5 500 22 19
7 x 1.5 0.7 0.3 13.5 260 15.5 520 21 18
10 x 1.5 0.7 0.3 17.0 340 18.5 655 18 16
12 x 1.5 0.7 0.3 17.5 390 19.0 720 17 15
14 x 1.5 0.7 0.3 18.0 430 20.0 825 16 14
16 x 1.5 0.7 0.3 18.5 475 21.0 925 16 14
19 x 1.5 0.7 0.3 19.5 540 22.0 1010 15 13
24 x 1.5 0.7 0.3 22.5 665 25.0 1250 13 12
27 x 1.5 0.7 0.3 23.0 750 25.5 1330 13 11
30 x 1.5 0.7 0.3 23.5 820 26.0 1400 12 11
37 x 1.5 0.7 0.3 25.0 975 28.0 1550 11 10
2 x 2.5 0.7 0.3 11.5 185 13.5 380 39 32
3x2.5 0.7 0.3 12.0 220 14.0 425 34 30
4 x 2.5 0.7 0.3 13.0 260 14.5 500 34 30
5 x 2.5 0.7 0.3 14.0 300 15.5 525 31 28
6 x 2.5 0.7 0.3 15.0 340 16.5 600 29 26
7 x 2.5 0.7 0.3 15.0 360 16.5 625 27 25
10 x 2.5 0.7 0.3 17.5 475 21.0 875 24 21
12 x 2.5 0.7 0.3 18.0 550 21.5 975 22 20
14 x 2.5 0.7 0.3 19.0 625 22.0 1050 21 19
16 x 2.5 0.7 0.3 20.5 680 23.5 1160 20 18
19 x 2.5 0.7 0.3 21.5 770 24.5 1250 19 17
24 x 2.5 0.7 0.3 24.5 950 27.5 1500 17 16
27 x 2.5 0.7 0.3 25.5 1050 28.5 1625 16 16
30 x 2.5 0.7 0.3 26.0 1150 29.0 1760 16 14
37 x 2.5 0.7 0.3 28.0 1350 31.5 2080 15 13

Note : The Conductor Size shall be According to the Resistance Value & it's Tolerance specified in IS:8130-1984
