High-Flexibility Flat Elevator Traveling Cables for Continuous Movement

Vision International is a leading manufacturer and exporter of Elevator Traveling Cables in India, based in Ahmedabad, Gujarat. Our elevator traveling cables are designed for continuous vertical movement in elevator and lift systems, offering high flexibility, abrasion resistance and reliable electrical performance.

Manufactured with 99.9% pure EC grade fine copper conductors and specially formulated PVC compounds, our flat elevator traveling cables are suitable for demanding applications where continuous bending and movement are required. We offer standard and customized cable configurations according to customer requirements.

Contact Us +91 8733821880

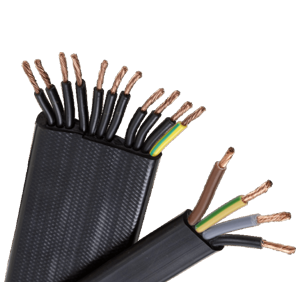

Flat elevator traveling cable with flexible copper conductors

PRODUCT FEATURES

✔  High Flexibility for Continuous Movement
✔  Excellent Abrasion Resistance
✔  Long Operational Life
✔  Smooth Vertical Travel Performance
✔  Reliable Electrical Conductivity

PRODUCT RANGE

  • 12 Core Flat Elevator Traveling Cables

  • 20 Core Flat Elevator Traveling Cables

(Custom configurations available upon request)

CONSTRUCTION DETAILS

🔹Conductor

  • Annealed Plain Copper

  • EC Grade

  • 99.9% Purity (As per IS:8130)

🔹 Insulation

  • PVC – Special Grade

  • FR (Flame Retardant)

  • FRLS (Flame Retardant Low Smoke)

🔹 Sheath

  • PVC-FR

  • TPR

APPLICABLE STANDARDS

Manufactured in compliance with:

  • IS 694

  • BS 6004

  • IEC 60227

  • IS 8130

  • IS 5831

ELEVATOR TRAVELING CABLES

Single Core Cable

No. of Cores Area (sq.mm) No. & Dia of Wires (mm) PVC Insulation PVC Sheath Current Capacity (Amp) Approx Weight (Kg/Km)
Nominal Thickness (mm) Core Dia (mm) Sheath Thickness (mm) Cable Thickness (mm) Width (mm)
12 0.5 16/0.2 0.60 2.00 1.2 4.4 26.4 4 200
12 0.75 24/0.2 0.60 2.00 1.2 4.7 30.0 7 258
12 1.00 32/0.2 0.60 2.50 1.2 4.9 32.80 12 309
12 1.50 48/0.2 0.60 2.70 1.2 5.1 35.20 16 475

Note : The Conductor Size shall be According to the Resistance Value & it's Tolerance specified in IS:8130-1984
